Note：
- Please DO NOT install the Xpressar™ cooling system on the un-overclocked low power CPU (65W), or the temperature of cooling block will be too low, the condensation water will generate on the surface of cooling block and damage the electrical device.
- The Xpressar™ RCS100 needs five minutes to reach the maximum cooling capability after system start. For the first time system booting after the system installation, please DO NOT over-clock the CPU, or the CPU and hardware will probably damage. Using the default CPU frequency and start the OS for 5 minutes, then restart the system to set the CPU over-clocking parameters in BIOS.

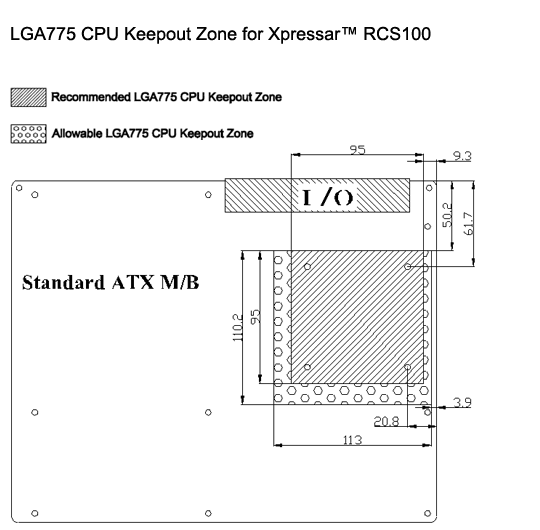

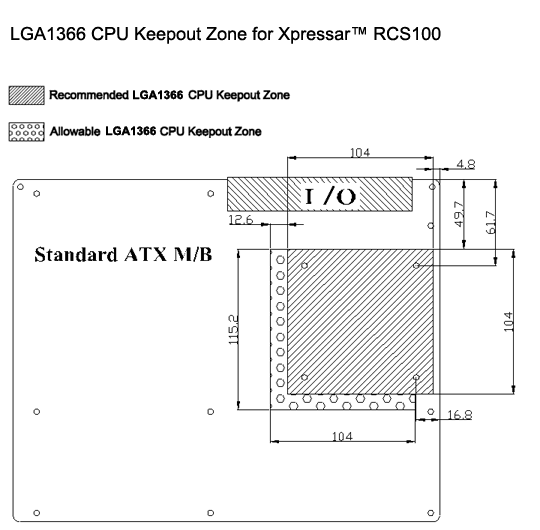

Compatibility Guideline |
| Model |
|
| Case Type |
Super Tower (Xaser VI all black VG4000BNSA) |
| Dimension (W*D*H) |
605 x 250 x 660 mm 23.8 x 9.8 x 26.0 inch |
| Net Weight / Gross Weight |
22.2 kg ; 48.9 lb / 29.9 kg ; 65.9 lb |
| Window side panel |
No |
| Sliding motherboard tray |
Yes |
| Cable management |
Yes |
| Sliding hood |
Yes |
| Adjustable PSU bridge |
Yes |
| Material |
Front door: Aluminum / Chassis: 1.0mm SECC |
| Color |
Chassis color: Black / Metal mesh : Black |
| Cooling System |
Front (intake)
140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional)
Top (exhaust)
140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional)
Bottom (intake)
Two 140 x 140 mm fans (optional) or two 120 x 120 x25 mm fan (optional)
VGA (intake)
140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional) |
| Motherboards |
9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
Drive Bays
-5.25" Drive Bay
-3.5" Drive Bay
-3.5" Drive Bay (Hidden) |
7
1 (Convertable from one 5.25" drive bay)
5 |
| Front I/O |
e-SATA connector x 2, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio |
| Expansion Slots |
10 |
| Refrigeration Cooling System Application |
Refrigeration Cooling System
Performance condenser
(A) Dimension of condenser: (L) 134 x (W) 120 x (T) 47 mm
(B) 120mm blue LED silent fan (1600 RPM)
Micro compressor
(A) Type: DC Inverter Type Rotary Compressor
(B) Operating voltage: DC 12V
(C) Speed Controlled Type: PWM
(D) Connector: 4-pins
(E) Power Consumption: 50 Watts (Max.)
All copper cold plate: For Intel LGA775 and LGA1366
Tube: All copper tube
Refrigerant: R134a (Industry Standard)
|
| Recommended PSU |
Based on system hardware configuration + additional 100W |
| Recommended Thermaltake PSU |
W0132 (1000W), W0131 (850W), W0133 (1200W), W0204(QFan 850W) |

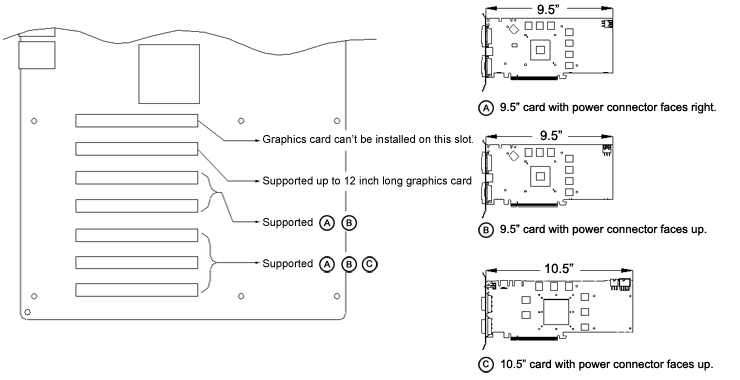

Compatibility Guideline
|
|
|
|
